NGT System Telescopic Doors

Telescopic Door Operator – NGT System

The ADIS research and design team has developed the NG series of door equipment to ensure maximum performance, durability, reliability combined with compatibility with the new Australian Standard AS 5007-2007 DIN 18650-1:2005.

ADIS’s Telescopic Doors are Australian made and designed to give maximum possible door opening. The series is also available in two and four-door modules, and consume less power during operation making them rather an energy-efficient.

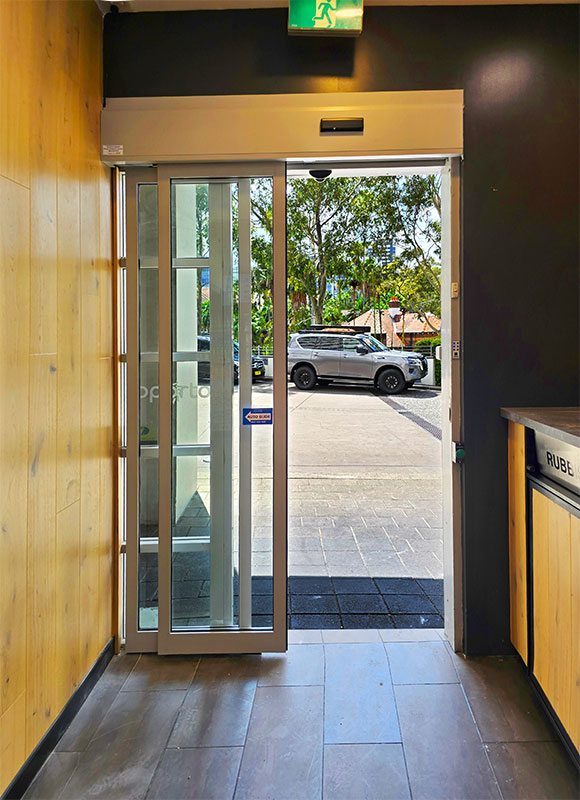

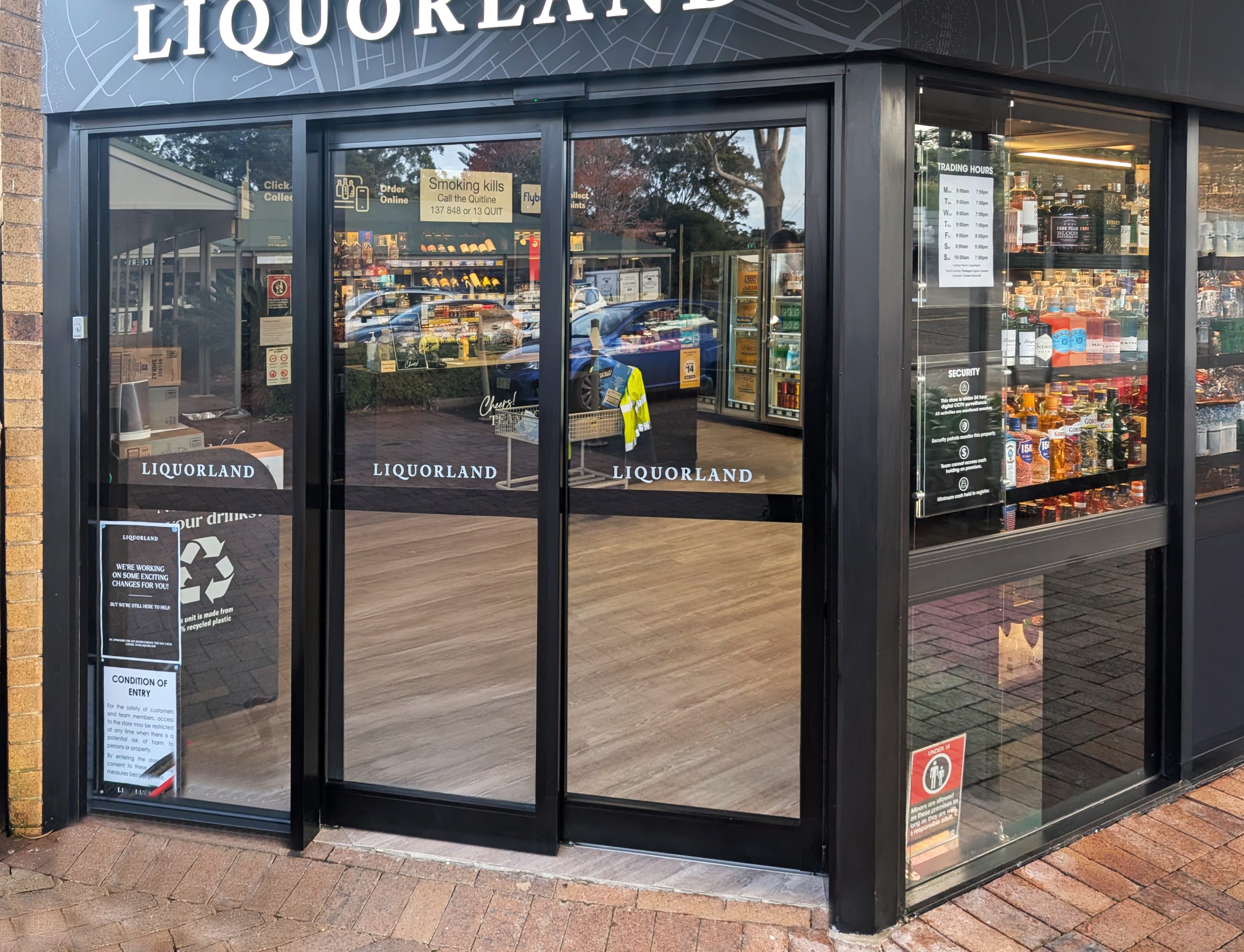

Telescopic Sliding Door


  • System designed to give max possible door opening
  • Australian Made
  • Designed for New Standards
  • Flushed Glazed doors allow doors to be parallel when open
  • High-Security Electric Locking
  • Available in 2 and 4 doors modules
  • Energy Efficient Low Power Consumption

Quiet Operation

The tracking system is dual linear, which is designed for high security and long life service. The carriage assemblies are fitted with unique track wheels that eliminate the possibility of the doors disengagement from the track.

Advanced Technology

ADIS utilizes the latest in digital microprocessor technology, giving the control unit multiple programmable modes including – provision to interface with building security system, monitoring the doors position and locks status, built-in UPS.

The microprocessor operating parameters can be adjusted to accommodate various climatic conditions and specific site requirements in relation to speed, braking etc. Safety is a priority: The ADIS microprocessor will automatically reverse operation while the door is closing, should the doors be obstructed.

Photoelectric or active infrared safety sensors are recommended to focus across the doorway to halt and open the doors immediately upon the sensor detecting an obstruction.

Multi Functional Mode Pad
The automatic door is controlled by a six-position digital keypad with Lock, Auto, Exit, Hold Open, Climate and Off Modes.
Pelmet Hinge
The ADIS pelmet design features a unique interlocking hinge to provide secure closure and maximum cover even when mounted hard up against the ceiling.
High Security Locking
An electric lock option is available to give total security and can be adapted where manual locking can not be achieved, i.e. frameless toughened glass doors. Lock type is the microprocessor-controlled electric locking system. The microprocessor monitors all aspects of the locks functions; e.g. To ensure the door is fully closed when the lock is 100% engaged. Terminal outputs are available to signal to security systems both door position and lock status. The microprocessor is also self-diagnosing.
Activation shall be one of the following:
  • Microwave sensors
  • Flush-mounted sensors
  • Passive infrared sensors
  • Fine line sensors
  • Induction loops
  • Remote control transmitter
  • Key card system.
  • Advantages
  • Australian made
  • Maximum opening width – 4000 mm
  • Maximum door weight for bi-parting doors – 300kg
  • An opening speed with double-leaf variable – 25-1300 mm/sec
  • A closing speed with double-leaf variable – 25-1300 mm/sec
  • Door open dwell time – 0-30 sec
  • Manual opening/closing force – <30N
  • Slimline modern design only 132mm in overall track height
  • The compact modular design of motor drive system Latest digital microprocessor controller to gain more exact control of the door operator
  • Provision to interface with building security and fire systems
  • Over-engineered to take total door weights of up to 300kg (max single leaf door weight of 150kg)
  • The main transom housing is hard coated anodised to give smooth operation of the exclusive dual-track system
  • NATA tested with 300kg doors to comply with Australian Standards
  • No exposed wiring due to concealed wiring system
  • UPS Lithium (Uninterrupted Power Supply) can allow doors to continue to operate under power failure. This optional extra allows the ADIS NGA operator to work 800 cycles or 28hours after disruption
  • Improved multiple safety features to ensure maximum user safety
  • High-security electric motor locking system with battery reserve back up Zone activation sensor system that uses the latest presence detection technology to improve overall safety
  • Unique interlocking cover pelmet which prevents any chances of pelmet cover dislodging from the main track system. An added safety feature.
